MEGATRON® MT-SHS 50/5L 高剪切在线分散系统
超高剪切在线分散机
我们新开发的 MEGATRON® MT-SHS 单元能够产生 65 m/s 的转子线速度和 300 000 s⁻¹ 的剪切速率。这一创新产品提供的剪切速率是我们标准产品系列的六倍。由于极高的能量输入，可实现达到纳米范围的颗粒或液滴尺寸，结果根据所处理的组分体系而有所不同。观看视频。
Megatron / 超高剪切在线分散机 – Kinematica AG
Kinematica 新开发的 MEGATRON® MT-SHS 单元能够产生 65 m/s 的转子线速度和 300 000 s⁻¹ 的剪切速率。这一创新产品提供的剪切速率是我们标准产品系列的六倍。由于极高的能量输入，可实现达到纳米范围的颗粒或液滴尺寸，结果根据所处理的组分体系而有所不同。观看视频。
Description
Our newly developed MEGATRON® MT-SHS unit is able to produce rotor tip speeds of 65 m/s and shear rate of 300 000 s-1. This novelty provides six times the shear rate than the ones of our standard product range. Due to the very high energy input it is possible to achieve particle or droplet sizes that go well into the nano range, results vary based on the component system being processed. Watch the video.
Would you like to learn more about the various application with MEGATRON® MT-SHS? Please contact us on science@kinematica.ch.
Benefits
Newly developed concept in rotor / stator technology provides the smallest possible particle sizes with the highest efficiency
– Rotor tip speeds up to 65 m/s and rotational speeds up to 25’000 rpm

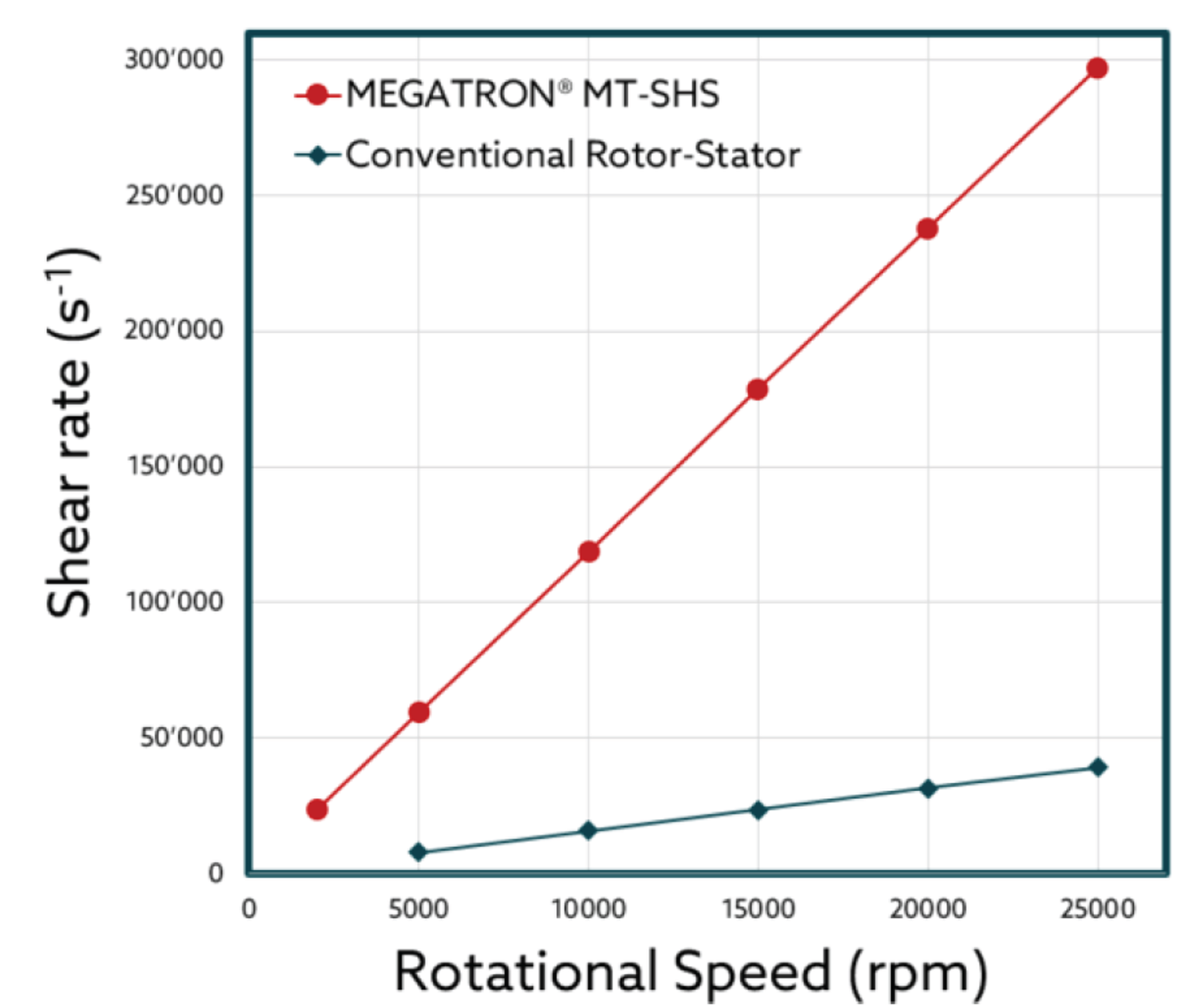

– Shear rates up to 300 000 s-1 possible
– High specific energy input resulting in nano sized particles or droplets (product dependent)
– Different rotor / stator geometries are available
– Scale-up to production machines is possible
Technical Information
| Motor | 5.5 kW three-phase motor with frequency converter |
| Speed adjustment | Stepless with integrated controller and digital display |
| Speed control | Stepless with integrated controller and Digital display |
| Generators | SHS special rotor / stator geometry with finest tooth system |
| Recirculation vessel | 5.0 liter stainless steel vessel for the continuous phase, double-walled design with thermostat connections |
| Tip speed | max. approx. 65 m/s |
| Pipe installation | Complete piping with the recirculation vessel |
| Max. shear rate 1/s | up to 300‘000 s-1 |
| Dimensions (LxWxH) | 715 x 300 x 1020 mm |
Downloads
| Product brochure / MT-SHS Series | English |  |
