Reactron RT 1 分散反应器
分散反应器 – 1L
实验室级别的反应和混合过程，模块化设计的实验室反应器 / 标准系统，含EU电源线（230 V）
REACTRON® 实验室系统由过程容器（单层和双层壁，标准及客户定制设计）、用于宏观混合的搅拌系统（例如锚式搅拌器）、用于破碎和微观混合的 POLYTRON® / MEGATRON® 均质机和混合系统、管道、过程控制及附件组成，所有配置均根据客户、产品和工艺要求进行匹配。
分散反应器 – 1L
实验室级别的反应和混合过程，模块化设计的实验室反应器 / 标准系统，含EU电源线（230 V）
REACTRON® 实验室系统由过程容器（单层和双层壁，标准及客户定制设计）、用于宏观混合的搅拌系统（例如锚式搅拌器）、用于破碎和微观混合的 POLYTRON® / MEGATRON® 均质机和混合系统、管道、过程控制及附件组成，所有配置均根据客户、产品和工艺要求进行匹配。
Description
Reaction and mixing processes at a laboratory level, modular design laboratory reactors / Standard system with EU-power cable (230 V)
REACTRON® laboratory systems consist of process vessels (single and multiple wall, standard and customer-specific designs), stirring systems for macro-mixing (e.g. with anchor stirrer), POLYTRON® / MEGATRON® homogenisers and mixing systems for crushing and micro-mixing, pipework, process controls and accessories, in alignment with the customer, product and process.
Benefits

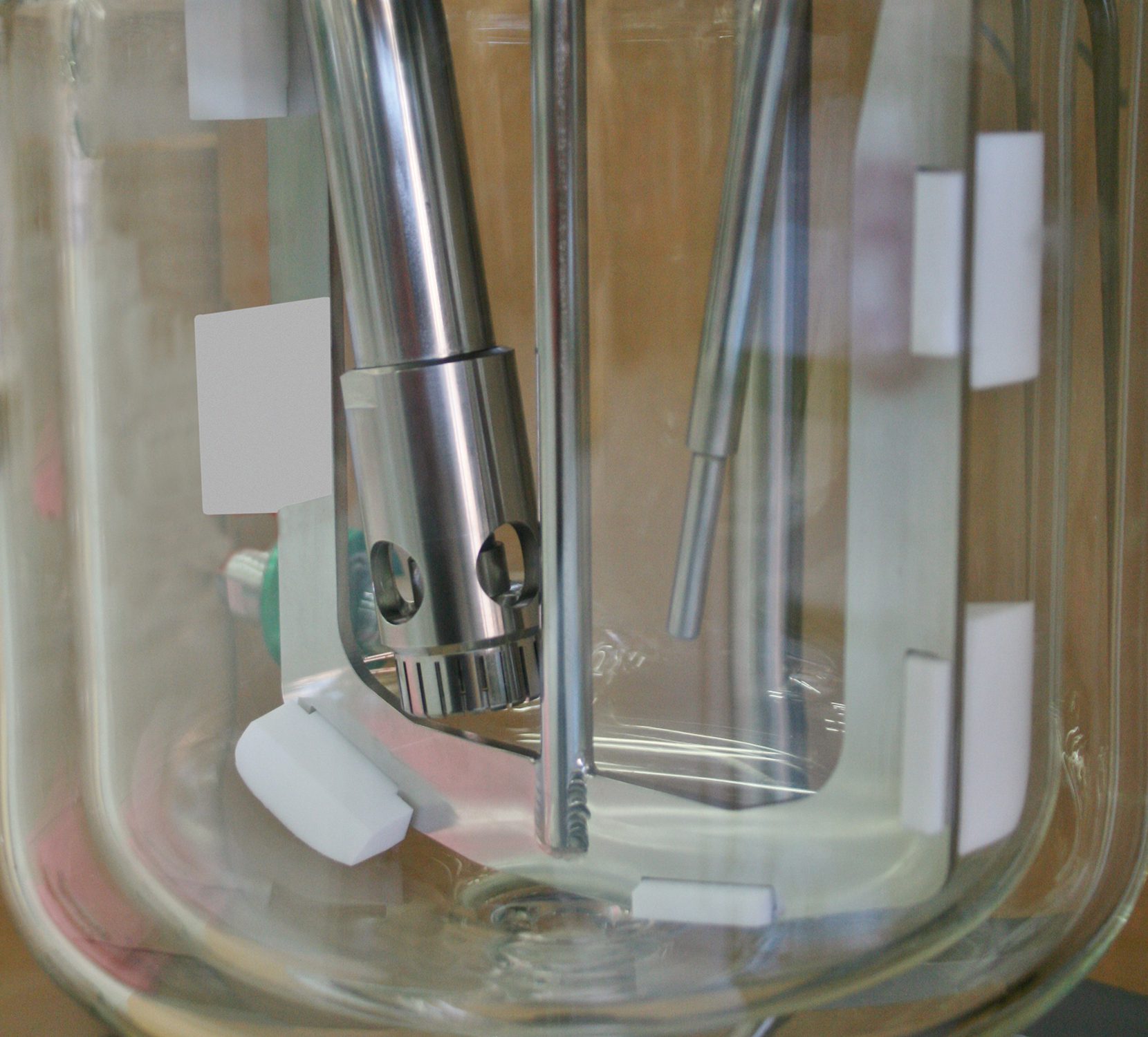

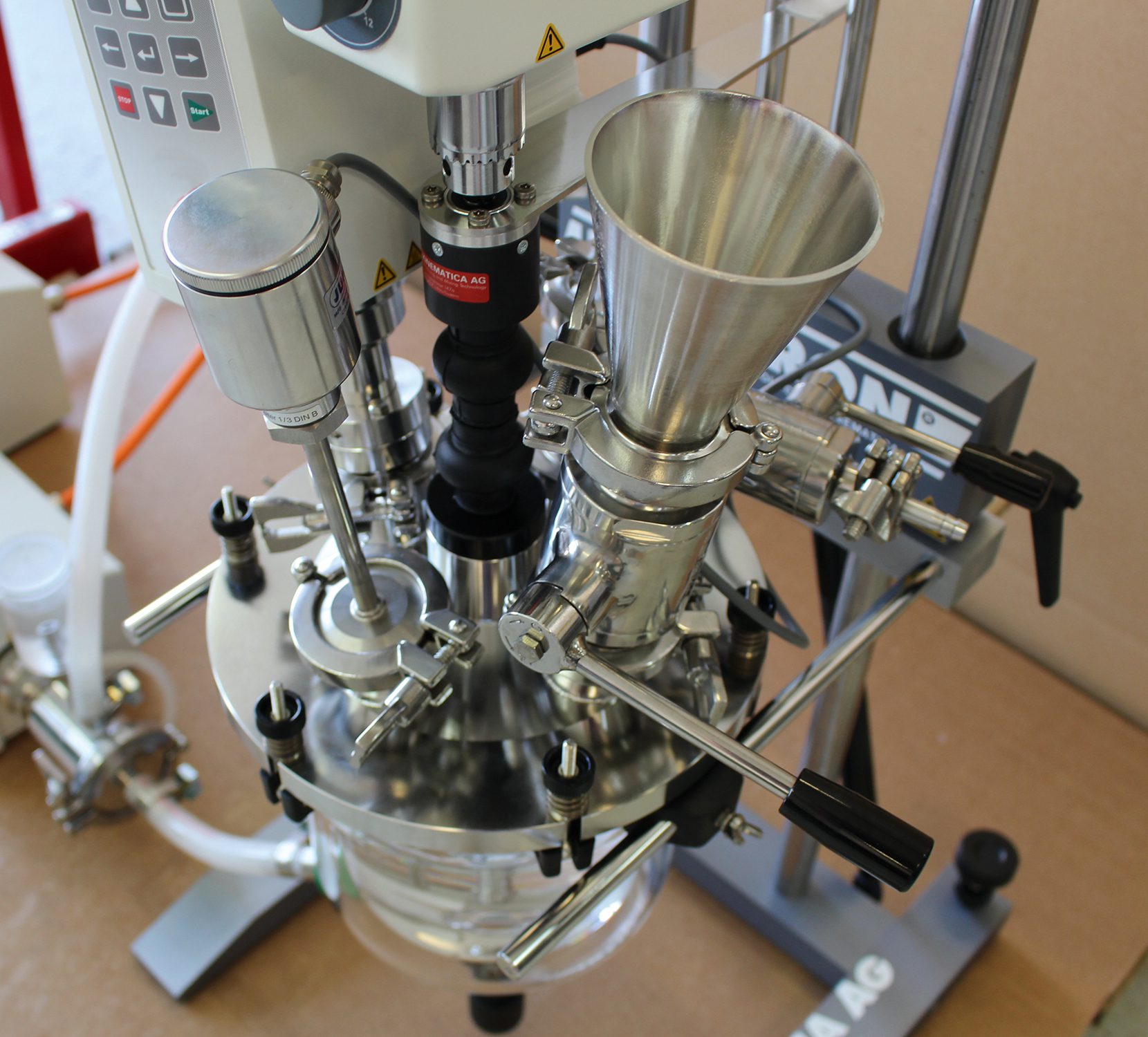

Jacketed vessel with useable capacity 1 liter made from borosilicate glass, vessel cover made from stainless steel 316L with four NS29 / 32 conical fittings and sealed, centrical lead-through fitting for stirrer tool, (electric) telescopic stand, POLYMIX® digital overhead stirrer with maintenance free gearbox 1 : 5 (high torque) and anchor stirrer. Upgrade options and complete accessory range on request.
Modular construction
– Mixing vessels, single wall or double wall: for the optimum application temperature
– Mixing vessels in borosilicate, glass or steel: when the vacuum is critical
– Range of dispersers drives and generators: give you the flexibility you want
– Cleaning and dismantling: is child’s play with the integrated (electro-) telescopic stand
– Simple change of aggregate: with Click & Go
– Best possible materials: otherwise it’s not Swiss Made
– Durability: is a Swiss virtue
Technical Information
|
Min. Volume (ml) |
500 |
|
Max. Volume (ml) |
1000 |
|
Applicable aggregates |
ø 20 mm to ø 25 mm, with / without mechanical seal |
| Vacuum | Up to 25 mbar (a) without homogenizer / Up to 250 mbar (a) with homogenizer |
|
Supply voltage |
90 – 230 V ± 10 %, 50Hz / 60Hz |
|
Max. relative density |
80 % storage / 80 % operation |
|
Operating temperature |
Standard max. 90 °C / On request >120 °C |
|
Protection class acc. to DIN |
IP 20 |
|
EMC standards |
IEC / EN 61000-6-2 / EN 61000-6-3 |
|
Safety standard |
IEC / EN 61010-2-51 |
Downloads
| Instruction Manual 2018 | German |  |
| Product brochure | English | |
| Produktbroschüre | German | |
| 产品手册 | Chinese | |
